Board Materials
Mill it. Finshed.
RAMPF Tooling Solutions – the world’s largest producer of styling, modeling, and working board materials
Styling Boards (SB)
RAKU® TOOL styling boards combine the ultimate in quality with outstanding mechanical properties. The semi-finished products – prefabricated, rectangular boards – made of polyurethane can be bonded in various shapes and sizes.
RAKU® TOOL adhesives matched to the hardness and color of the boards are available for bonding. The styling and design range includes board materials with densities of up to approx. 0.5 g/cm3. Materials in this density range are suitable for both CNC machining and manual processing.
The styling and design portfolio also features apricot-colored materials – a firm favorite on the market.
When you choose RAKU® TOOL styling boards, you are choosing exceptional surface finishes with optimum dimensional stability.
Applications include negative molds for casting, supporting structures for pastes, NC program testing, design and form studies as well as styling, master, and data control models.
![[Translate to English - USA (en-US):]](/fileadmin/_processed_/2/d/csm_SB-0470_4aa7e25fc2.jpg "[Translate to English - USA (en-US):]")
Modeling Boards (MB)
RAKU® TOOL modeling boards are the work of true pioneers, combining the ultimate in quality with outstanding mechanical properties.
Rudolf Rampf, founder of the RAMPF Group, produced the very first polyurethane modeling board back in the early 1980s.
New products have been developed and existing ones optimized on an ongoing basis ever since.
RAKU® TOOL modeling boards are semi-finished products – prefabricated, rectangular boards – made of polyurethane that can be bonded in various shapes and sizes.
RAKU® TOOL adhesives matched in hardness and color to the boards are available for bonding.
Modeling boards are quick and easy to mill on CNC machines, with manual processing also possible in some cases.
Impressive features of these polyurethane boards with densities ranging from 0.6 to 0.72 g/cm3 include good chip formation, fine surface finishes, and excellent dimensional stability.
When you choose RAKU® TOOL modeling boards, you are choosing a product made in Germany to the highest quality standard – the RAMPF standard.
Applications include master, cubing, and presentation models as well as design and form studies.
![[Translate to English - USA (en-US):]](/fileadmin/_processed_/9/1/csm_MB-0720_4fa6bfaa3a.jpg "[Translate to English - USA (en-US):]")
RAKU® TOOL MB-0600
HIGH PRECISION. HIGH PERFORMANCE.
- Concentration on milling technology
- Immediately available
- Quick and easy production of models
- Fine surface structure
- Good dimensional stability
- Low coefficient of thermal expansion
Working Boards (WB)
RAKU® TOOL working boards combine the ultimate in quality with outstanding mechanical properties.
The semi-finished products – prefabricated, rectangular boards – made of epoxy or polyurethane can be bonded in various shapes and sizes.
RAKU® TOOL adhesives matched in hardness and color to the boards are available for bonding.
RAKU® TOOL working boards are produced in densities ranging from 0.69 to 1.7 g/cm3, boast excellent dimensional stability, and enable quick and easy machining.
The portfolio includes two epoxy board materials, which are mainly used as lay-up tools for composites and have become an established benchmark solution in the automotive and aerospace industries.
Our experienced development engineers can quickly customize our high-performance standard products.
Applications include metal forming, hammer forms, foundry patterns, molds, checking fixtures, jigs, and lay-up tools.
![[Translate to English - USA (en-US):]](/fileadmin/_processed_/b/3/csm_WB-0691_db12323326.jpg "[Translate to English - USA (en-US):]")
![[Translate to English - USA (en-US):]](/fileadmin/_processed_/3/3/csm_WB-0700_ee674c5c41.jpg "[Translate to English - USA (en-US):]")
![[Translate to English - USA (en-US):]](/fileadmin/_processed_/9/f/csm_WB-0801_be57c2c81d.jpg "[Translate to English - USA (en-US):]")
![[Translate to English - USA (en-US):]](/fileadmin/_processed_/6/a/csm_WB-0890_d28ccc1e88.jpg "[Translate to English - USA (en-US):]")
RAKU® TOOL WB-1223
Bonding with RAKU® TOOL PP-3323 / PH-3905 (red) or PP-3358 / PH-3905 (red)
![[Translate to English - USA (en-US):]](/fileadmin/_processed_/b/b/csm_WB-1258_caea0a4528.jpg "[Translate to English - USA (en-US):]")
RAKU® TOOL WB-1258
Density 1.20 g/cm3
Bonding with RAKU® TOOL PP-3323 / PH-3905 (orange) or PP-3358 / PH-3905 (orange)
![[Translate to English - USA (en-US):]](/fileadmin/_processed_/0/2/csm_WB-1700_16c101fba5.jpg "[Translate to English - USA (en-US):]")
RAKU® TOOL WB-0890!
THE NEW EPOXY BOARD STANDARD!
REVOLUTIONIZING THE COMPOSITES INDUSTRY.
The new epoxy board was developed in conjunction with the engineering company of racing and high performance road cars, Dallara Automobili, Italy.
For more Information click here.
RAKU® TOOL Adhesives
The RAKU® TOOL range of adhesives includes one- and two-component systems based on epoxy and polyurethane.
The adhesives’ properties and, in some cases, their color are specifically matched to the relevant board materials for a secure bond and optimum results.
RAKU® TOOL adhesive systems are available with different degrees of temperature resistance and are sure to impress with their outstanding adhesion, excellent flow properties, easy processing, and rapid curing at room temperature.
RAKU® TOOL PP-3323 / PH-3905 red or orange
RAKU® TOOL PP-3323-1 / PH-3905 red or orange
RAKU® TOOL PP-3358 / PH-3905 orange or red

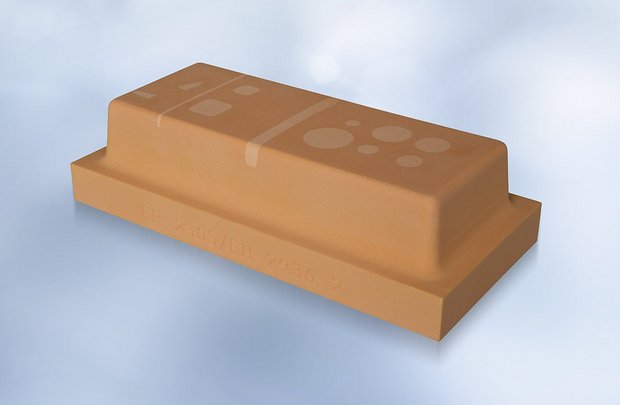

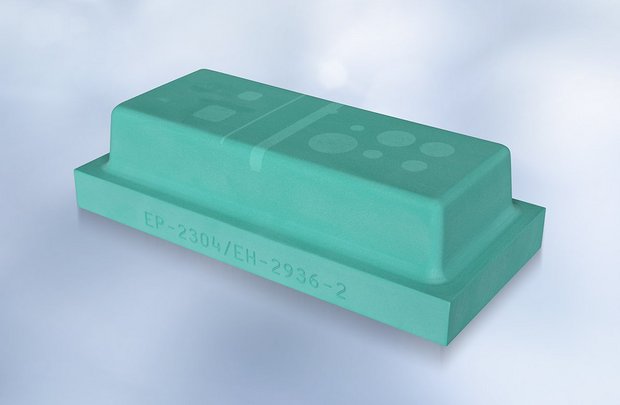

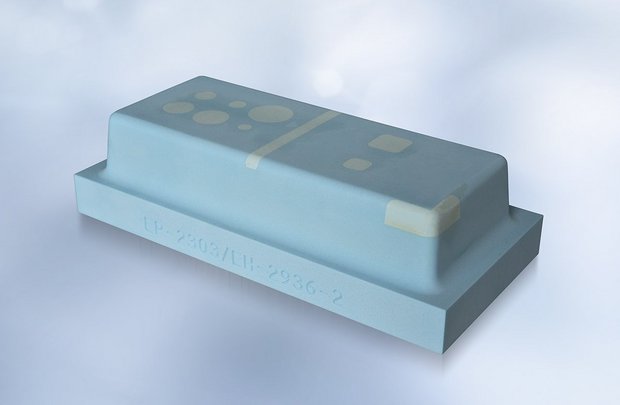

RAKU® TOOL Repair Pastes
The RAKU® TOOL range of repair pastes includes two-component systems based on epoxy.
Some of the repair pastes’ properties and their color are matched to the relevant board materials for optimum results.
